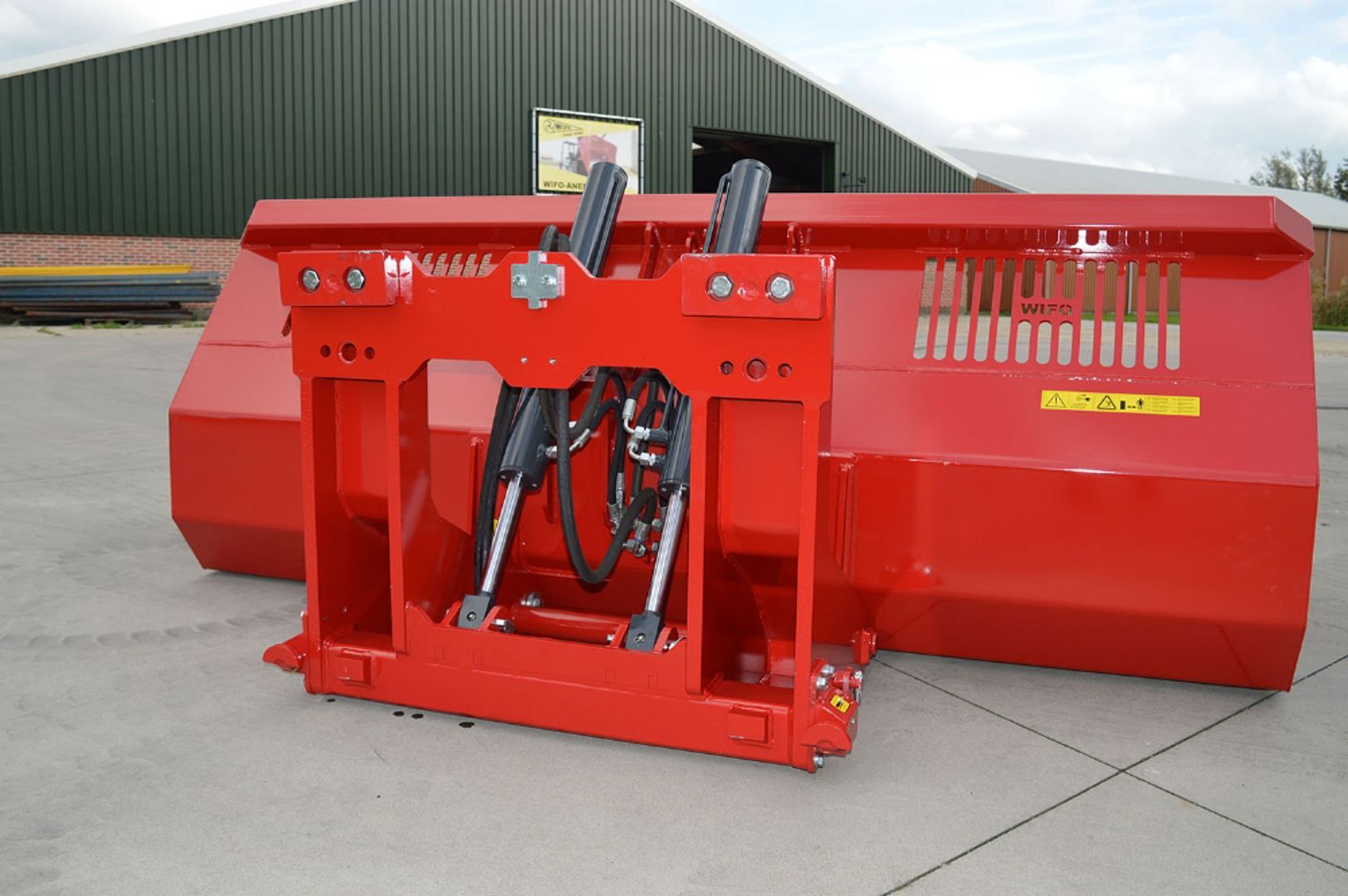

Loading bucket (heavy duty, fork carriage mounted)

Producten-49-attachment1_HODZF1-1.jpg Producten-49-attachment7_HODZF2-1.jpg Producten-49-attachment2_HODZF-1.jpg

Loading bucket (heavy duty, fork carriage mounted)

  • Suitable for products vulnerable to damage
  • Frame with rapid coupling directly onto fork carriage
  • See-through grille for optimal visibility
  • 8 mm plate thickness
  • All pivots equipped with bearings
  • With boron wearing strip (150x20 mm)
  • Complete with hoses and quick connectors

Properties

Are you interested in this product or do you want a demonstration?

HOD-Z-200/225F: 1 cylinder, for fork carriage FEM2 and 3
HOD-Z-250/275F: 2 cylinders, for fork carriage FEM3 and 4

Swipe right for all types

Types and specifications

Type

Shovel width
Center of gravity
Shovel depth
Weight
Shovel height
Volume
Price
Additional charge stainless steel bottom plate

Options

Straight edges (not possible in combination with detachable frame)
Transparent cover-plate mounted on see-through grille (for grain, etc.)
Detachable frame (+20% content; not for products vulnerable to damage)
Bolted plastic wear strip (200x25 mm)

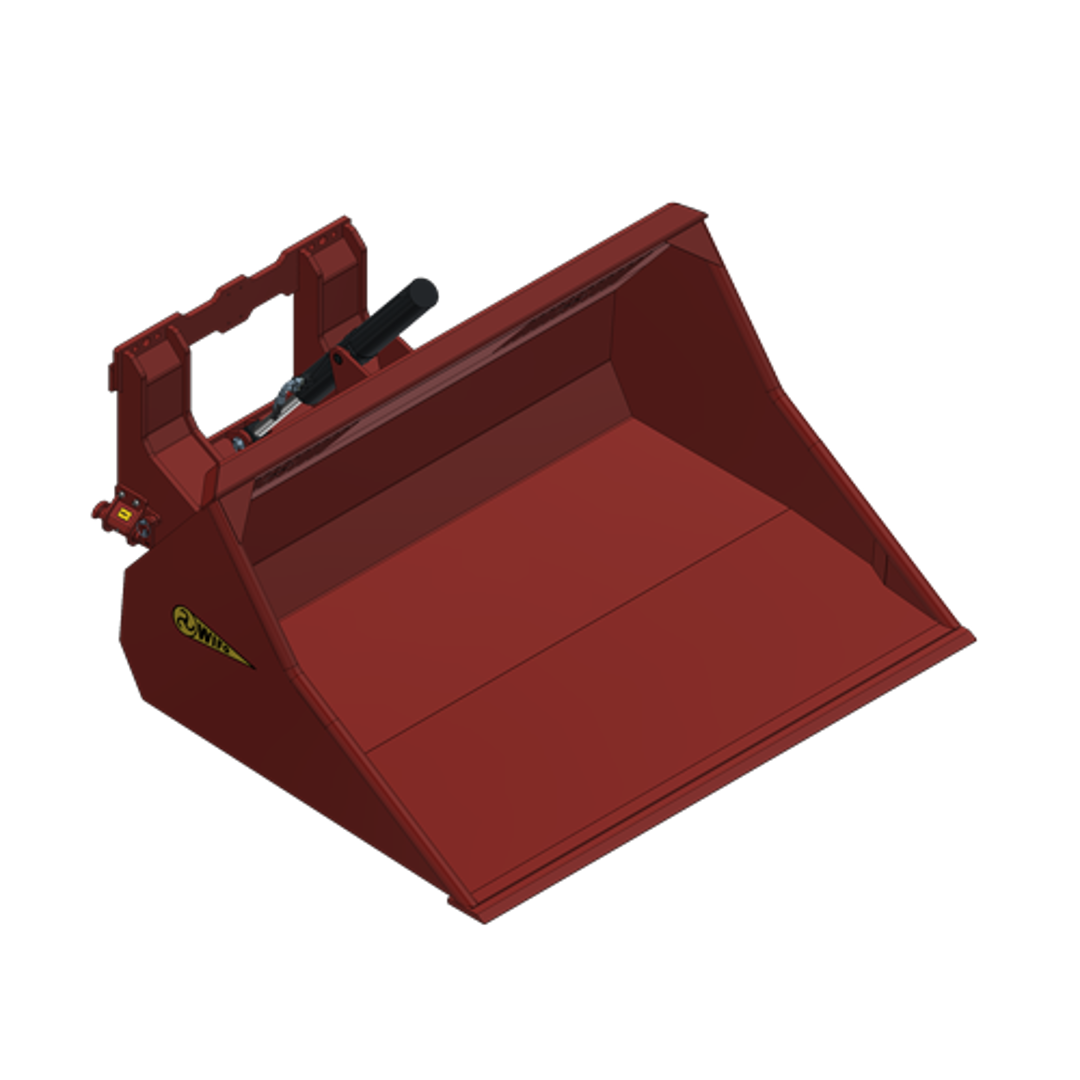

HOD-Z-200F

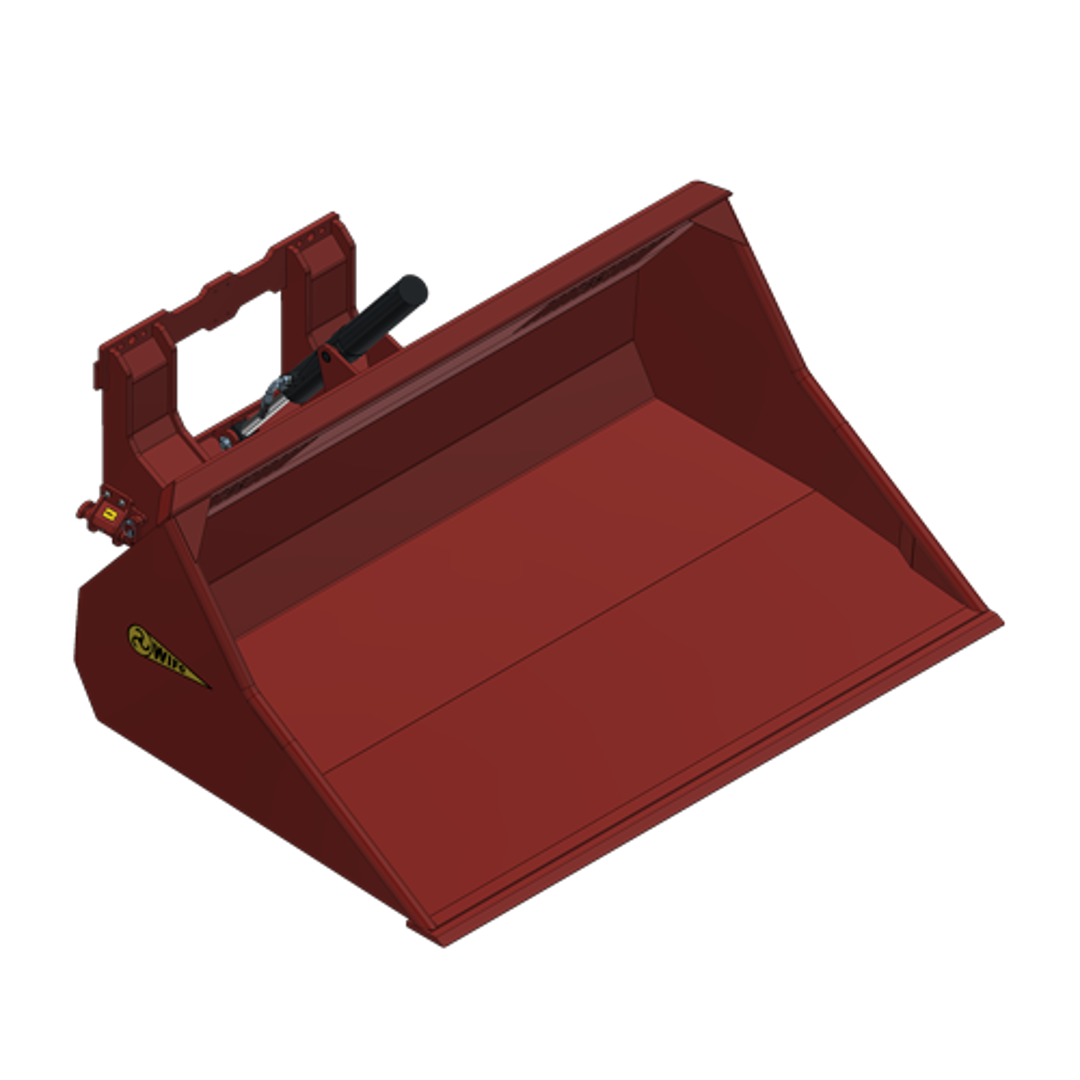

HOD-Z-225F

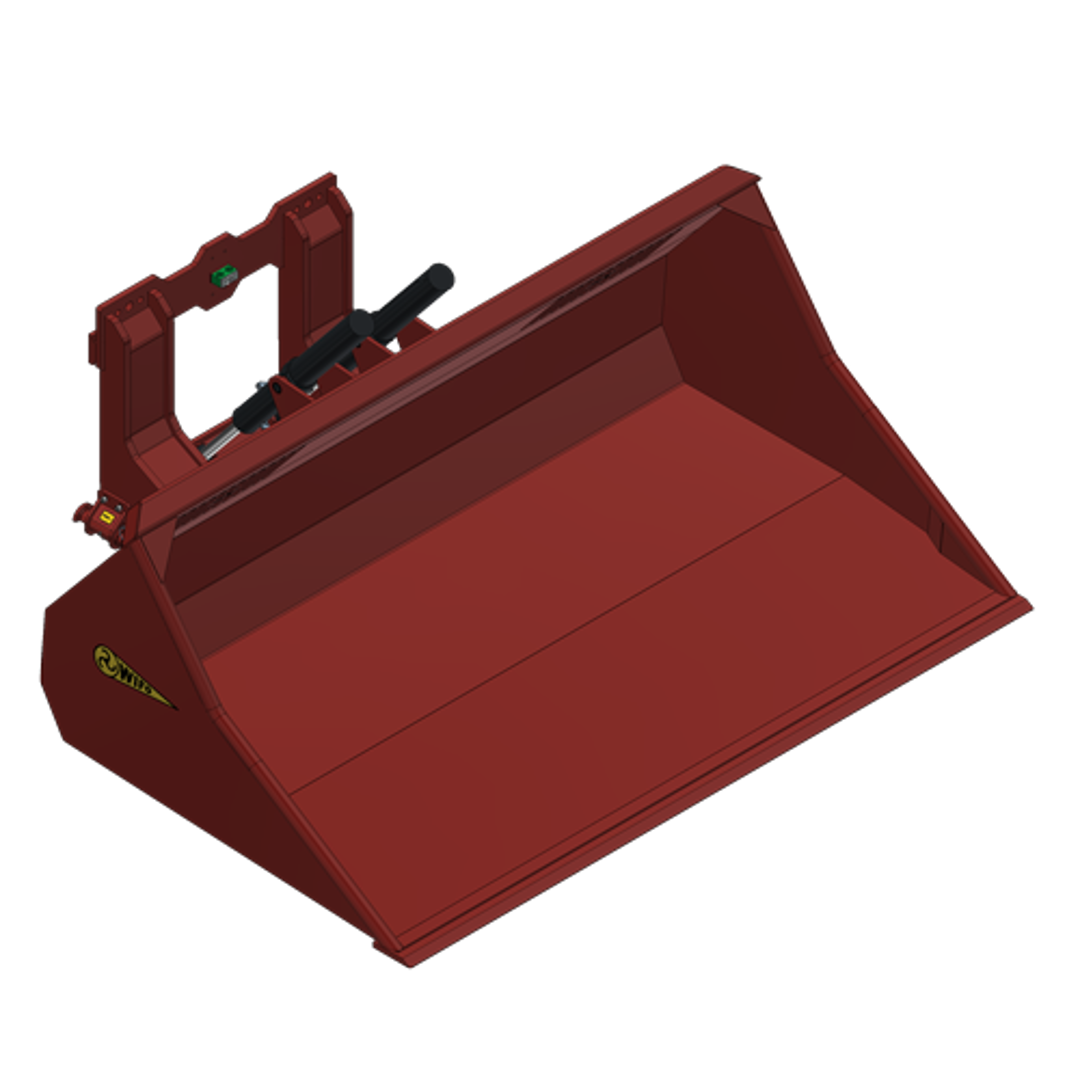

HOD-Z-250F

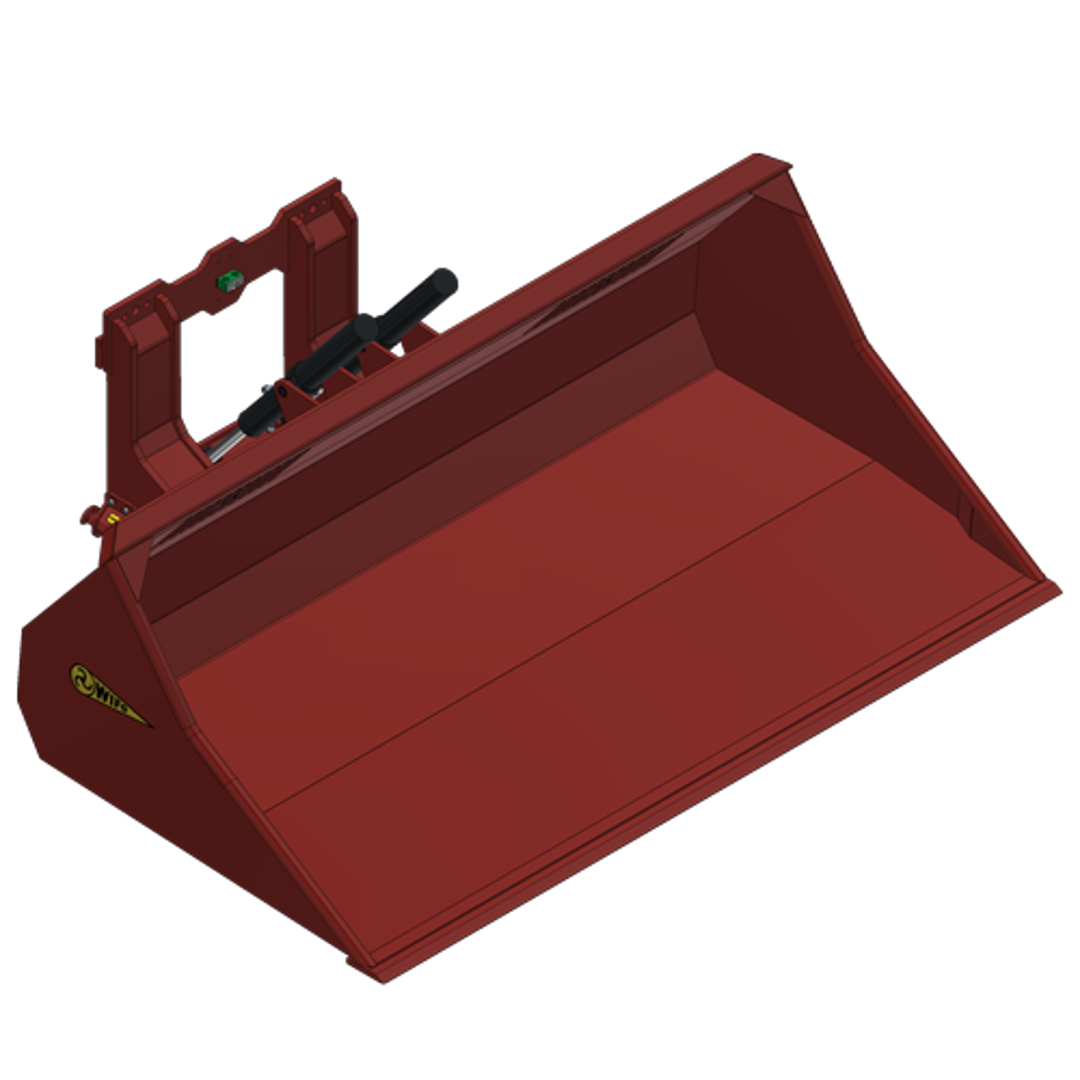

HOD-Z-275F
2000 mm
2250 mm
2500 mm
2750 mm
800 mm
800 mm
800 mm
800 mm
1550 mm
1550 mm
1550 mm
1550 mm
750 kg
795 kg
925 kg
970 kg
850 mm
850 mm
850 mm
850 mm
1500 l
1700 l
1900 l
2100 l
€ 6.675,–
€ 6.900,–
€ 7.575,–
€ 7.800,–
€ 650,–
€ 700,–
€ 750,–
€ 800,–
HOD-Z-200F
HOD-Z-225F
HOD-Z-250F
HOD-Z-275F
€ 200,– Retail price excl. VAT
€ 200,– Retail price excl. VAT
€ 200,– Retail price excl. VAT
€ 200,– Retail price excl. VAT
€ 75,– Retail price excl. VAT
€ 75,– Retail price excl. VAT
€ 75,– Retail price excl. VAT
€ 75,– Retail price excl. VAT
€ 650,– Retail price excl. VAT
€ 650,– Retail price excl. VAT
€ 650,– Retail price excl. VAT
€ 650,– Retail price excl. VAT
€ 575,– Retail price excl. VAT
€ 575,– Retail price excl. VAT
€ 575,– Retail price excl. VAT
€ 575,– Retail price excl. VAT
