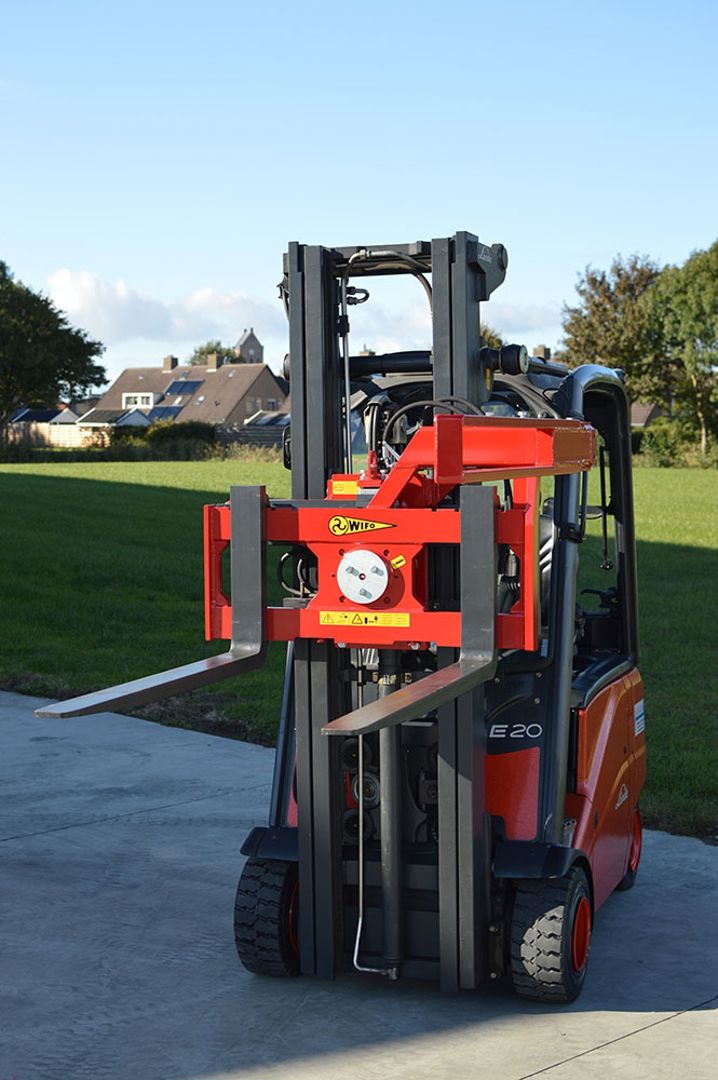

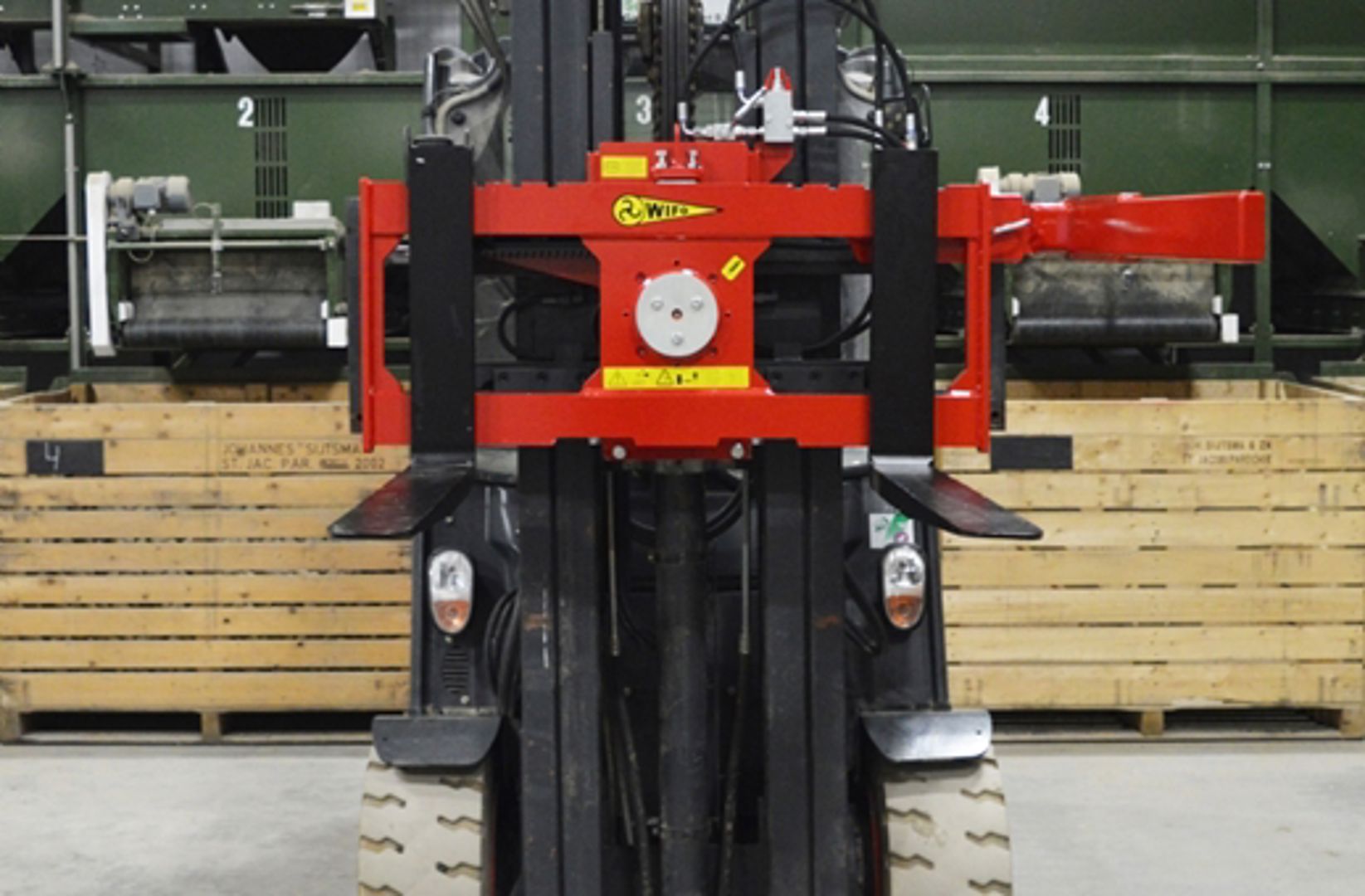

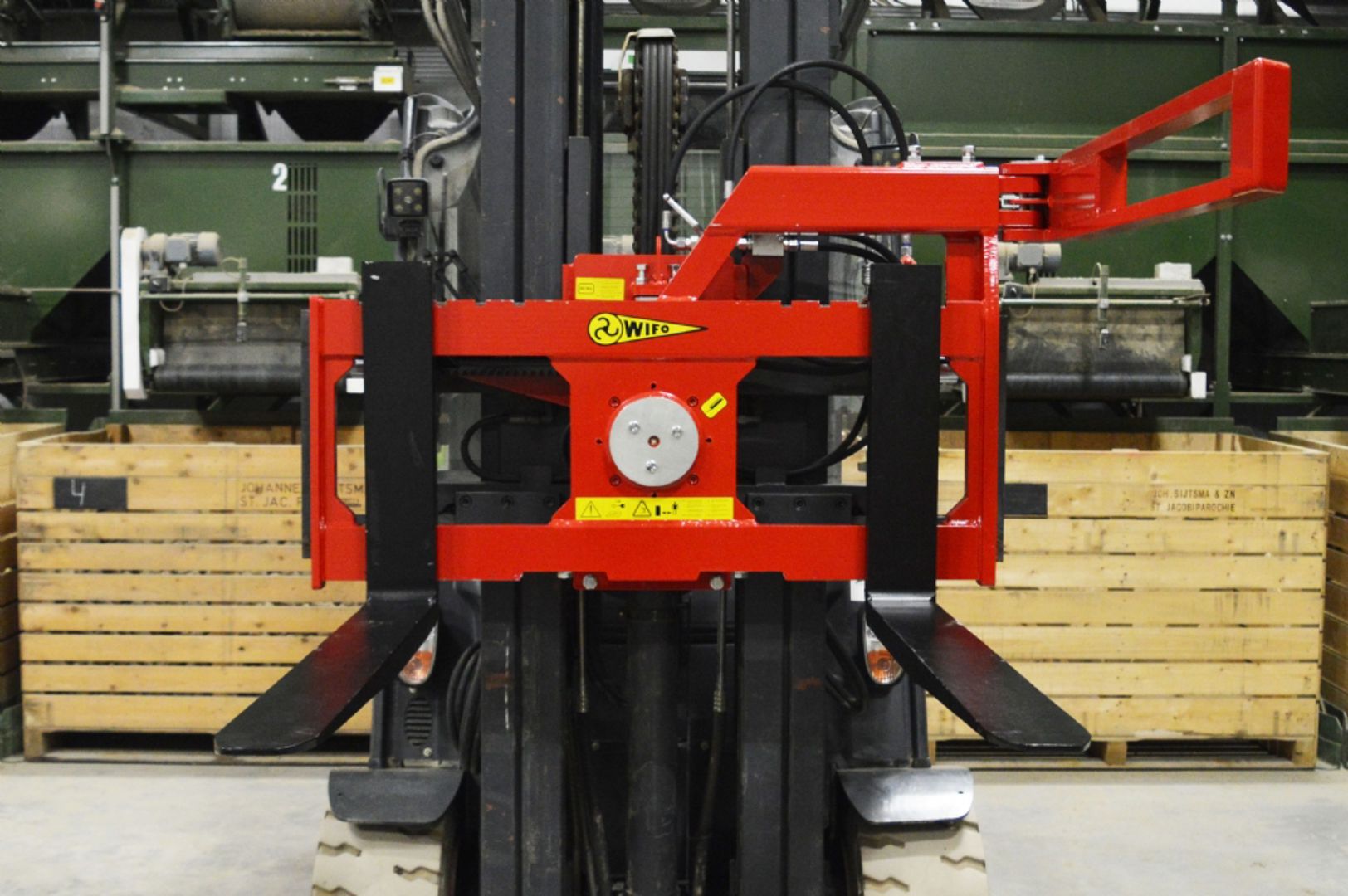

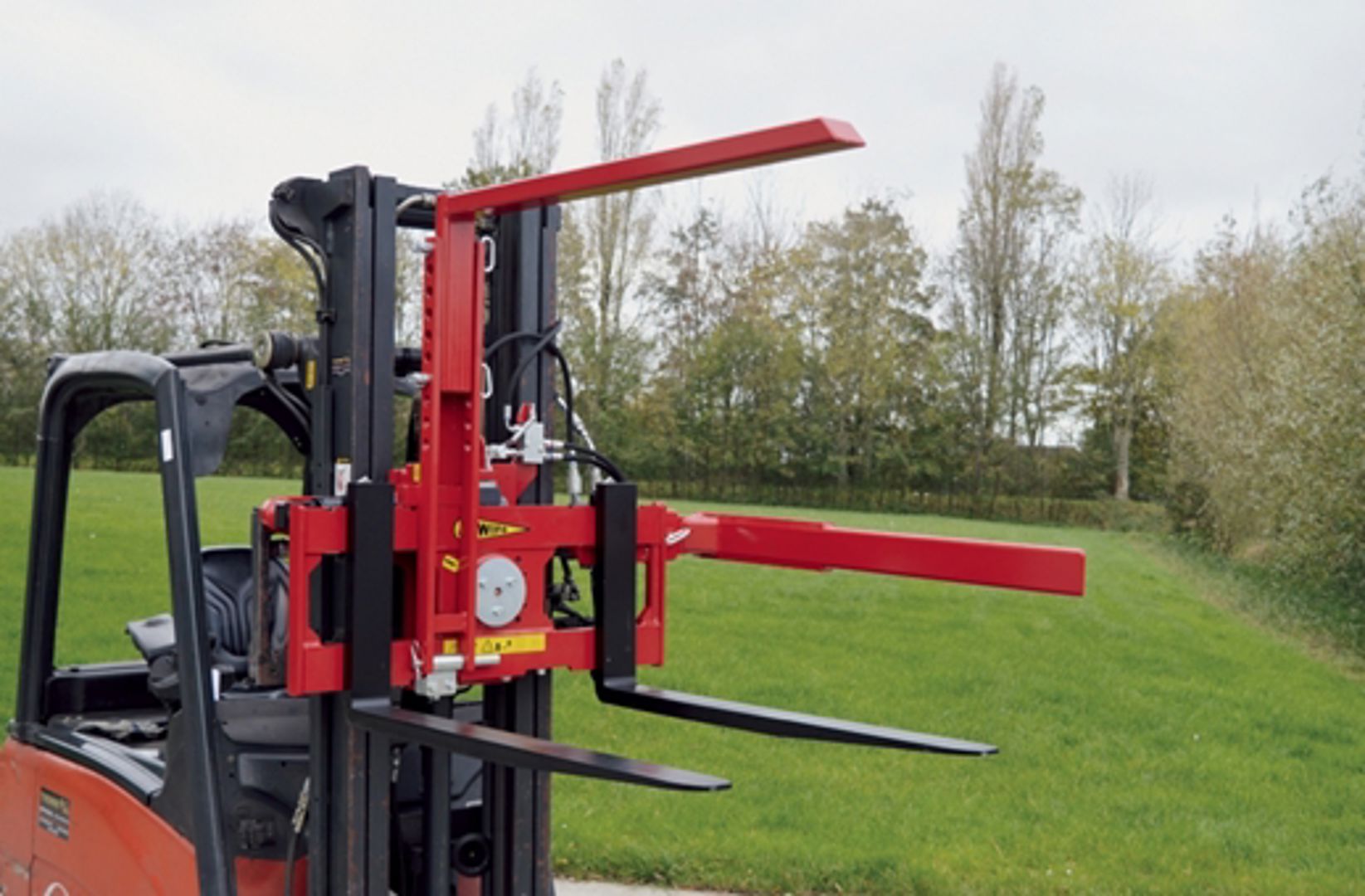

Box rotator

Box rotator

Maximum box width: 1800 mm
180° rotation angle (left rotation as standard)
Open construction for optimal visibility on the forklift forks

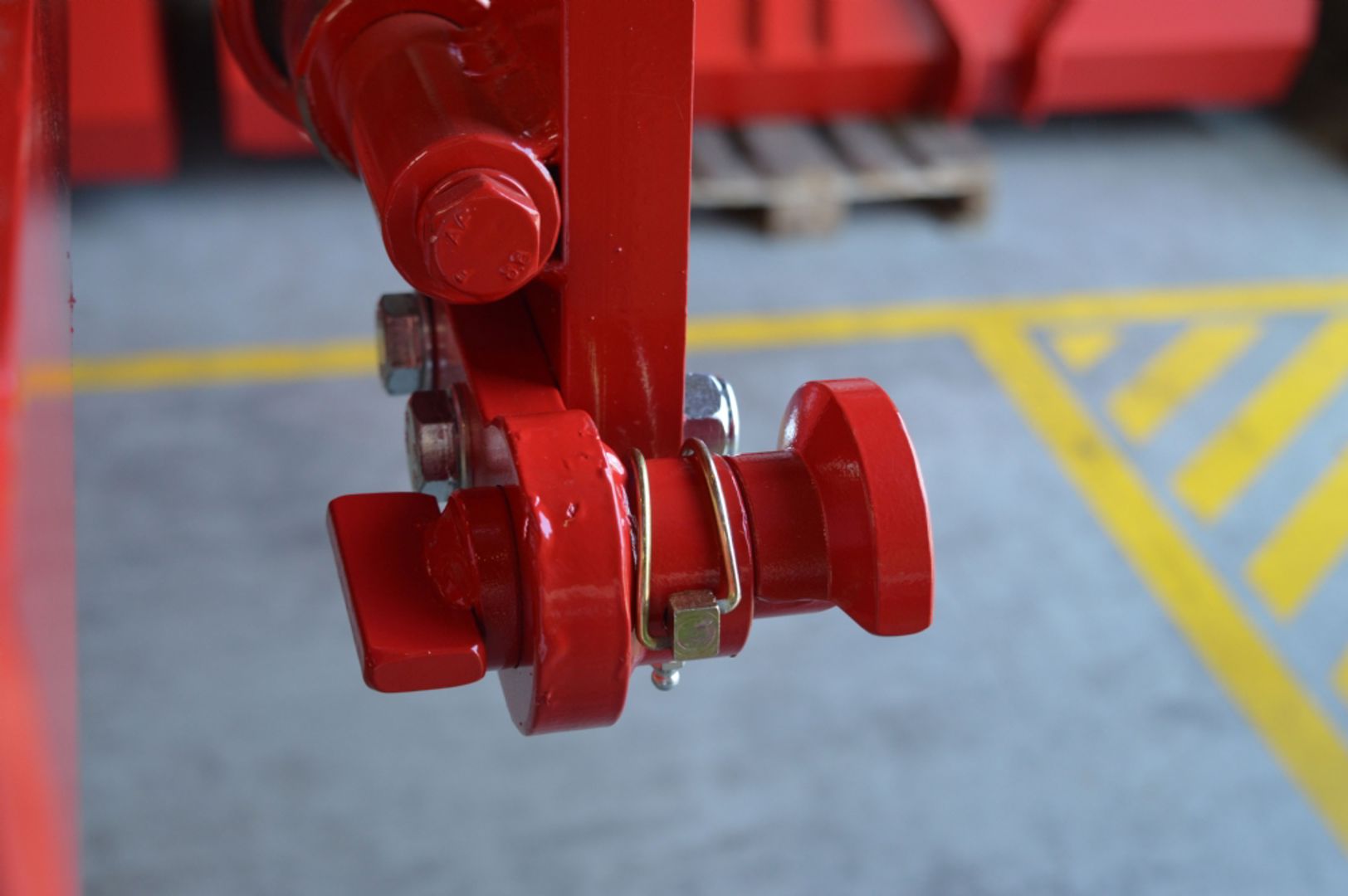

Plug-in or folding third fork with gas spring
Third fork in width adjustable
High quality tipping shaft with sleeve bearing
Including hoses and quick connectors
Excluding forklift forks
Equipped with durable and replaceable sprocket and gear rack (width 50 mm)

Properties

View all options Download product manual

Are you interested in this product or do you want a demonstration?

Find your WIFO dealer View options

Swipe right for all types

Types and specifications

Type

Fork carrier width

Center of gravity

Weight

Heigth third fork*

Heigth of the fork carrier

Maximum load

Frontal extension length

Price

Options

Rotation angle up to 200° I/O 180°

Right rotated instead of left rotated

Topfork for folding model (detachable)

Hydraulic connection on fork carrier (Rotating)

Hydraulic connection (not turning)

Rapid coupling

Adjustable ball bearing instead of sleeve bearing

Attachment to frontloader or reachtruck

K54A-I *

K54A-O *

K54C-I *

K54C-O *

1000 mm

1200 mm

133 mm

158 mm

134 mm

158 mm

240 kg

270 kg

315 kg

345 kg

360 mm

660 mm

460 mm

760 mm

FEM2: 407

FEM3: 508

2500 kg

3500 kg

165 mm

185 mm

€ 3.350,–

€ 3.700,–

€ 3.975,–

€ 4.325,–

K54A-I *

K54A-O *

K54C-I *

K54C-O *

€ 200,– Retail price excl. VAT

€ 250,– Retail price excl. VAT

€ 450,– Retail price excl. VAT

€ 325,– Retail price excl. VAT

€ 225,– Retail price excl. VAT

€ 325,– Retail price excl. VAT

€ 950,– Retail price excl. VAT

Click here

SPECIALIST IN BOX TIPPERS

As a specialist, WIFO offers an extensive range of box tippers. Our tippers are extremely suitable for picking up, transporting and emptying any type of box and the most diverse agricultural products such as potatoes, onions, carrots but also products in the processing industry such as recycled products.
